Debug Probe

How to install, setup and use the debug probe.

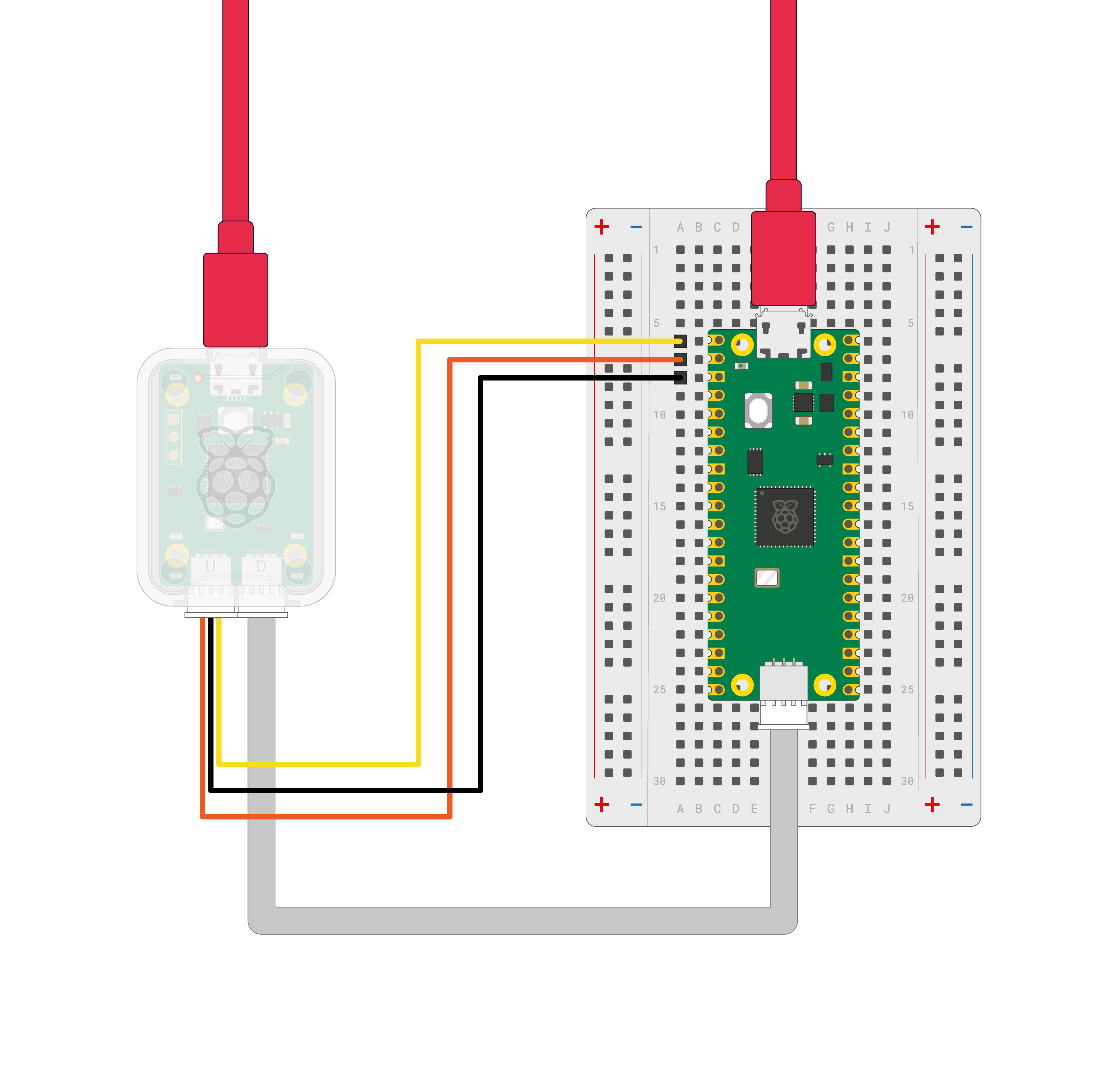

Wiring

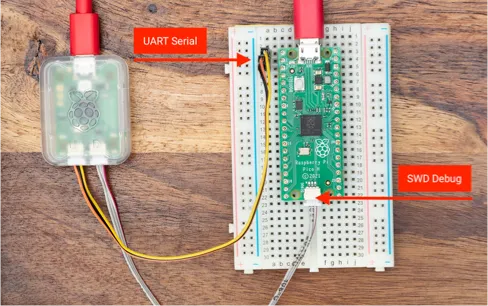

The debug probe contains two cables. The gray for programming and debug and the black, red, yellow for a Serial UART Communcation.

Installation

We will use probe-rs

# install gdb
brew install arm-none-eabi-gdb

# probe-rs
brew tap probe-rs/probe-rs
brew install probe-rs

Programming

The Pico Debug Probe will let you load binaries via the SWD port and OpenOCD: you will not need to unplug, and then push-and-hold, the BOOTSEL button every time you push a new binary to your Pico. Using the Debug Probe uploading new binaries is an entirely hands off affair.

sudo openocd -f interface/cmsis-dap.cfg -f target/rp2040.cfg -c "adapter speed 5000" -c "program blink.elf verify reset exit"
